4-20mA Water Gas Air Pressure Transducer Liquid Application Pressure Sensor Transmitter

    Buy cheap 4-20mA Water Gas Air Pressure Transducer Liquid Application Pressure Sensor Transmitter from wholesalers

    Buy cheap 4-20mA Water Gas Air Pressure Transducer Liquid Application Pressure Sensor Transmitter from wholesalers
    • Buy cheap 4-20mA Water Gas Air Pressure Transducer Liquid Application Pressure Sensor Transmitter from wholesalers
    • Buy cheap 4-20mA Water Gas Air Pressure Transducer Liquid Application Pressure Sensor Transmitter from wholesalers
    • Buy cheap 4-20mA Water Gas Air Pressure Transducer Liquid Application Pressure Sensor Transmitter from wholesalers

    4-20mA Water Gas Air Pressure Transducer Liquid Application Pressure Sensor Transmitter

    Ask Lasest Price
    Brand Name : RUIJIA
    Model Number : RJSPB101
    Certification : CE
    Price : USD30-40/piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000 Piece/Pieces per Month
    Delivery Time : Within 2Weeks
    • Product Details
    • Company Profile

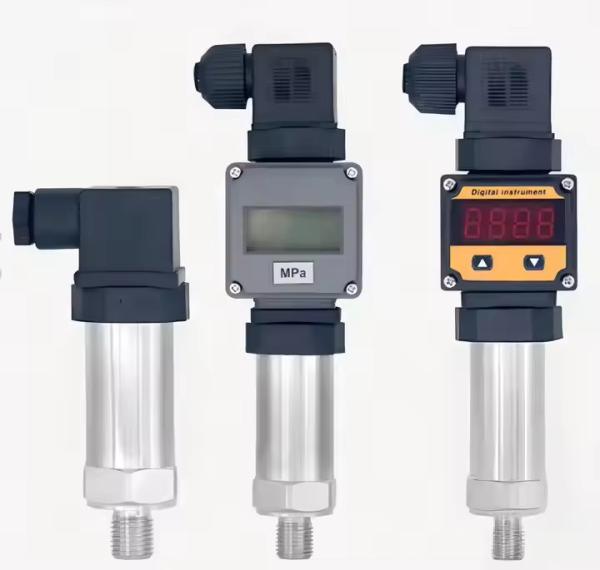

    4-20mA Water Gas Air Pressure Transducer Liquid Application Pressure Sensor Transmitter

    Factory Price 4-20mA Water Gas Air Pressure Transducer Liquid Application Pressure Sensor Transmitter

    Product Description
    Working principle
    Compact pressure transmitter is a pressure measuring instrument with compact structure, small volume and light weight. The pressure of the measured medium directly acts on the diaphragm of the sensor, causing
    the diaphragm to produce a micro-displacement proportional to the medium pressure, which in turn leads to a change in the resistance value of the sensor. Then this change is detected through an electronic circuit and a standard measurement signal
    corresponding to this pressure is converted and output.
    Specification
    Measurement Range
    -0.1….0~0.01...~100MPa
    Proof pressure
    ≤1.5X rated pressure or 110MPa which ever is less
    Pressure type
    Gauge, absolute ,sealed gauge
    Accuracy
    ±0.25%(Typical) ±0.5%(Max.)
    Long term stability
    ±0.2%F.S/year
    Operating Temperature Range
    -20℃~80℃
    Storage Temperature Range
    -40℃~120℃
    Power supply
    15~30VDC
    Output signal
    4~20mA 0~10/20mA 0/1~5VDC
    Pressure port
    M20×1.5 or customize
    material
    1Cr18Ni9Ti stainless steel
    Diaphragm material
    316L
    O-ring
    Fluororubber
    Insulation resistance
    100MΩ,100VDC
    Protection
    IP65
    Measuring medium
    Liquids Compatible
    Process connection
    M20*1.5 G1/4 NPT1/4 (or Customized)
    electrical connection

    Xi'an Ruijia Measuring Instruments Co., Ltd. is a manufacturer of force sensors and related products, dedicated to providing high-quality solutions for various industries. With a commitment to innovation, reliability, and precision, we have established ourselves as a trusted partner for businesses worldwide.
    Founded in 2005, we have accumulated years of experience in the field of weighing technology, enabling us to deliver products tailored to our customers' needs. Our product range includes a comprehensive selection of load cells, weighing modules, controllers, systems, and software solutions. We offer a diverse array of weighing products suitable for industrial automation, logistics, transportation, healthcare, retail, and more.
    At Xi'an Ruijia Measuring Instruments Co., Ltd., we pride ourselves on our technological expertise and dedication to continuous improvement. Our team of skilled engineers is committed to developing innovative solutions that push the boundaries of weighing technology, ensuring our products meet the highest standards of performance and accuracy. We serve a global clientele, catering to diverse market sectors across the globe. Our products are utilized by businesses of all sizes, from small enterprises to multinational corporations, in both domestic and international markets.
    Quality is at the core of everything we do. We adhere to stringent quality control measures throughout the manufacturing process to ensure that our products meet or exceed industry standards. Our commitment to quality has earned us a reputation for reliability and excellence among our customers. Besides, customer satisfaction is our top priority. We offer comprehensive customer service and support, including technical consultation, pre-sales assistance, and after-sales service, to ensure a seamless experience for our clients.
    With a focus on innovation, quality, and customer satisfaction, Xi'an Ruijia Measuring Instruments Co., Ltd. is your trusted partner for all your weighing sensor needs. Contact us today!
    Our Services

    Service standards: we are committed to provide a high quality and responsive service to all clients

    The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.

    Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.

    Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach from from our side to your side, which is very convenient for your business

    OEM available

    FAQ

    1. What detailed information do I need to provide if I want to place an order?

    We need to know the following information: Capacity, Usage and other related parameters you need.

    2. Do you have any discount?

    Yes, if you buy large QTY, please send us a email, we will give you a big discount.

    3. What terms of payment are available?

    We accept T/T, L/C, Trade assurance, Secure payment, Western Union, Paypal, Money Gram, etc.

    4.When will you arrange the production?

    We will arrange the production immediately after receiving your payment.

    5. How do you ensure good product quality?

    We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
