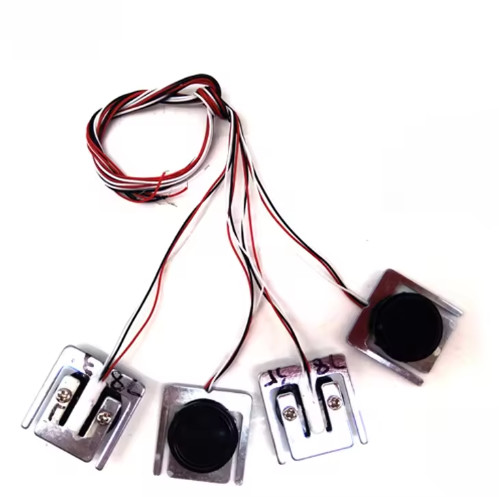

Half bridge thin flat load cell sensor 3kg 5kg load cell with feet
Features
Capacity: 3kg ~5kg
Type: half bridge load cell
Application: Kitchen scale
Parameters
| Model | SC913A |
| Capacity: | 3kg |
| Accuracy: | 0.05%FS |
| Rated output: | 1.0±0.15mV/V |
| Non-linearity: | ±0.1%FS |
| Hysteresis: | ±0.1%FS |
| Repeatability: | ±0.05%FS |
| Creep: | ±0.15%FS/3min |
| Zero balance: | ±0.5mV/V |
| Input resistance | 500±10Ω: |
| output resistance: | 500±10Ω: |
| Insulation resistance: | ≥2000MΩ |
| Excitation voltage: | 5~10VDC |
| Operating temperature: | -10~+40ºC |
| temp effect on zero: | ±0.1%FS/10ºC |
| Temp effect on span: | ±0.1%FS/10ºC |
| Ultimate overload: | 150%F.S |
| Application | Kitchen scale, small weight scales, force test |
Product Description
Xi'an Ruijia Measuring Instruments Co., Ltd. was founded in 2005,
mainly engaged in Torque Sensor, Load Cell, Pressure Transducer,
Strain Gauges and Weighing Indicators. Since establishment, we
insist the guidelines of "Customer Oriented, Quality Focused,
Professional Service "All products we supply are environment
friendly and has passed RoHS test.
Xi'an Ruijia Measuring Instruments Co., Ltd., in accordance with
the principle of the introduction of advanced professional
ultrasonic gas cleaning, clean Room patches, automatic temperature
compensation and detection, high and low temperature testing and
thermal experiments, laser welding and printing, CAD design,
manufacturing and testing sensor test equipment and production
technology ,manufacture all varieties of sensors, high precision,
stable performance and also has antiseptic, waterproof,
anti-explosion, anti-lightning, etc favored deeply by users.
FAQ
1.How to place an order ?
Please provide us more details of what you want, such as:
application, measurement range, output, accuracy, thread type,
electric connector and other related parameters.
2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a
big discount.
3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.
4.When will you arrange the production ?
We will arrange the production immediately after receiving your
payment.
5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are
fully checked by IQC, OQC departments
before shipping to our clients.
6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some
products we offer 15month to 24 months warranty.
