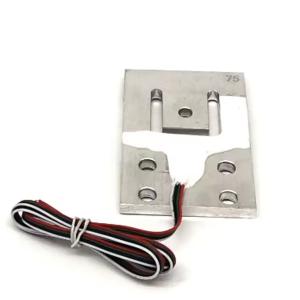

75kg 100kg 150kg 200kg 300kg flat thin weight sensor load cell 75
kg 100 kg 150 kg 200 kg 300 kg
Features:
Capacity:30kg-300kg
Type: load cell
Bridge: full bridge
Material:alloy steel load cell
Parameters:
Parameters
| Capacity Range | 30kg, 50kg, 75kg, 100kg, 150kg, 200kg, 300kg, 600kg |
| Rated Output | Refer to table above |
| Accuracy | 0.05%F.S. |
| Non-Linearity | ±0.05%F.S |
| Hysteresis | ±0.05%F.S. |
| Repeatability | ±0.05%F.S. |
| Creep | ±0.05.[(2min)%F.S ] |
| Zero Output | ± 0.1 mV/V |
| Temp.Effect on Zero | ±0.05 (%F.S./10℃) |
| Temp.Effect on Span | ±0.05 (%F.S./10℃) |
| Input Impedance | 1130 ± 20Ω |
| Output Impedance | 1000 ± 10Ω |
| Insulation Resistance | ≥2000MΩ (50VDC) |
| Temp. Compensation Range | 0-+40℃ |
| Operating Temp.Range | -10℃~+40℃ |
| Recommended Excitation Voltage | 5-10VDC |
| Safe Overload | 120% |
| Ultimate Overload | 150% |
| Cable Length | ø0.8mm, 30kg/75kg:40cm long, 150kg/300kg:15cm long |
| Protection Class | IP65 |
| Connection | Excitation: Red+, Black-. Signal: Green +, White- |
Xi'an Ruijia Measuring Instruments Co., Ltd. is a manufacturer of
force sensors and related products, dedicated to providing
high-quality solutions for various industries. With a commitment to
innovation, reliability, and precision, we have established
ourselves as a trusted partner for businesses worldwide.
Founded in 2005, we have accumulated years of experience in the
field of weighing technology, enabling us to deliver products
tailored to our customers' needs. Our product range includes a
comprehensive selection of load cells, weighing modules,
controllers, systems, and software solutions. We offer a diverse
array of weighing products suitable for industrial automation,
logistics, transportation, healthcare, retail, and more.
At Xi'an Ruijia Measuring Instruments Co., Ltd., we pride ourselves
on our technological expertise and dedication to continuous
improvement. Our team of skilled engineers is committed to
developing innovative solutions that push the boundaries of
weighing technology, ensuring our products meet the highest
standards of performance and accuracy. We serve a global clientele,
catering to diverse market sectors across the globe. Our products
are utilized by businesses of all sizes, from small enterprises to
multinational corporations, in both domestic and international
markets.
Quality is at the core of everything we do. We adhere to stringent
quality control measures throughout the manufacturing process to
ensure that our products meet or exceed industry standards. Our
commitment to quality has earned us a reputation for reliability
and excellence among our customers. Besides, customer satisfaction
is our top priority. We offer comprehensive customer service and
support, including technical consultation, pre-sales assistance,
and after-sales service, to ensure a seamless experience for our
clients.
With a focus on innovation, quality, and customer satisfaction,
Xi'an Ruijia Measuring Instruments Co., Ltd. is your trusted
partner for all your weighing sensor needs. Contact us today!
FAQ
1.How to place an order ?
Please provide us more details of what you want, such as:
application, measurement range, output, accuracy, thread type,
electric connector and other related parameters.
2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a
big discount.
3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.
4.When will you arrange the production ?
We will arrange the production immediately after receiving your
payment.
5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are
fully checked by IQC, OQC departments
before shipping to our clients.
6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some
products we offer 15month to 24 months warranty.
