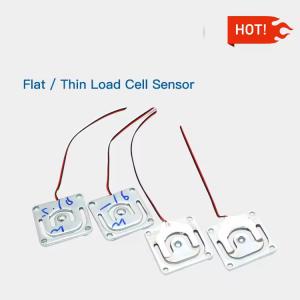

Full Bridge Body Scale Micro Load Cell Smart feeder Smart warehouse
10kg 30kg 50kg
Features:
1. Material: manganese steel, surface anodic oxidation treatment;
2. High precision, half bridge and full bridge available;
3. Application: portable scale and other miniature electronic
weighing equipment
4. Bulk order will get more competitive price, please inquiry us to
get a quote!
Parameters:
| Rated capacity | 10, 30, 50kg | Input resistance | 1000±10Ω |
| Rated output- full bridge | 2.0±0.15mV/V(30-50kg) | Output resistance | 1000±10Ω |
| 1.0±0.15mV/V(10kg) | Temp. effect on span | 0.05%F.S/10℃ |
| Rated output- full bridge | 1.0±0.15mV/V(30-50kg) | Temp. effect on zero | 0.1%F.S/10℃ |
| 0.5±0.15mV/V(10kg) | Excitation voltage | 3-10VDC |
| Comprehensive error | 0.05%F.S | Compensated temp.range | -10~+40℃ |
| Non-linearity | 0.05%F.S | Safe overload | 120%F.S |
| Repeatability | 0.05%F.S | Ultimate overload | 150%F.S |
| Hysteresis error | 0.05%F.S | Defend grade | IP65 |
| Creep | 0.05%F.S/3min | Cable | Three or Four color PVC wires |
| Zero output | ±0.3mV/V | Cable length | φ0.8*200-400mm |
| Insulation resistance | ≥2000MΩ | | |
