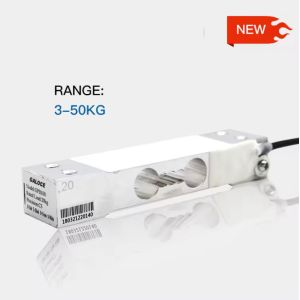

    Ruijia Customized C3 High Precision Single Point Load Cell High Accuracy Resistance Sensor Analog SENSOR

    Ask Lasest Price
    Brand Name : Ruijia
    Certification : CE
    Price : USD 7.5~9.4 /piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
    Supply Ability : 2000 Piece/Pieces per Month
    Delivery Time : Within 2Weeks
    • Product Details
    • Company Profile

    Ruijia Customized C3 High Precision Single Point Load Cell High Accuracy Resistance Sensor Analog SENSOR

    Ruijia Customized C3 high precision single point Load Cell high accuracy Resistance Sensor Analog SENSOR

    What is GPB100-C3 Single Point Load Cell?
    GPB100-C3 single point load cell is for electronic counting scales, smart shelves, etc which needs high quality weighing condition. GPB100-C3 is our new arrival product, made of aluminum alloy material, and we recommend the max platform of it is 250×350mm.

    Specification

    Rated Capacity
    3, 6, 10, 15, 20, 30, 40, 50kg
    Accuracy class
    C3
    Compensated Temp.Range
    -10℃~+40℃
    Comprehensive error
    0.02%
    Recommended Excitation
    5~12VDC
    Rated output
    2.0±0.1mV/V
    Maximum Excitation
    18VDC
    Zero Balance
    ±5%F.S
    Operating Temp.Range
    -20℃~+60℃
    Linearity Error
    ±0.02%F.S
    Safe Overload
    150%F.S
    Repeatability Error
    ±0.015%F.S
    Ultimate Overload
    200%
    Hysteresis Error
    ±0.015%F.S
    Insulation Resistance
    ≥2000MΩ(50VDC)
    Creep
    0.03%/30min

    Cable length
    Φ4mm×0.4m
    Input Resistance
    405±10Ω
    Cable
    4-Wire Shielded Cable
    Output Resistance
    350±3Ω
    Protection Class
    IP65
    Temp.Effect on Output
    0.03%/10℃
    Wiring code
    Exc+:Red Exc-:Black
    Temp.Effect on Zero
    0.05%/10℃
    Sig+:Green Sig-:White

    Dimension

    Ruijia Customized C3 High Precision Single Point Load Cell High Accuracy Resistance Sensor Analog SENSOR

    Ruijia Customized C3 High Precision Single Point Load Cell High Accuracy Resistance Sensor Analog SENSOR

    Ruijia Customized C3 High Precision Single Point Load Cell High Accuracy Resistance Sensor Analog SENSOR

    Details Images

    Ruijia Customized C3 High Precision Single Point Load Cell High Accuracy Resistance Sensor Analog SENSOR

    Ruijia Customized C3 High Precision Single Point Load Cell High Accuracy Resistance Sensor Analog SENSOR

    Ruijia Customized C3 High Precision Single Point Load Cell High Accuracy Resistance Sensor Analog SENSOR

    Company Information

    Ruijia Customized C3 High Precision Single Point Load Cell High Accuracy Resistance Sensor Analog SENSOR
    Xi'an Ruijia Measuring Instruments Co., Ltd. is a manufacturer of force sensors and related products, dedicated to providing high-quality solutions for various industries. With a commitment to innovation, reliability, and precision, we have established ourselves as a trusted partner for businesses worldwide.
    Founded in 2005, we have accumulated years of experience in the field of weighing technology, enabling us to deliver products tailored to our customers' needs. Our product range includes a comprehensive selection of load cells, weighing modules, controllers, systems, and software solutions. We offer a diverse array of weighing products suitable for industrial automation, logistics, transportation, healthcare, retail, and more.
    At Xi'an Ruijia Measuring Instruments Co., Ltd., we pride ourselves on our technological expertise and dedication to continuous improvement. Our team of skilled engineers is committed to developing innovative solutions that push the boundaries of weighing technology, ensuring our products meet the highest standards of performance and accuracy. We serve a global clientele, catering to diverse market sectors across the globe. Our products are utilized by businesses of all sizes, from small enterprises to multinational corporations, in both domestic and international markets.
    Quality is at the core of everything we do. We adhere to stringent quality control measures throughout the manufacturing process to ensure that our products meet or exceed industry standards. Our commitment to quality has earned us a reputation for reliability and excellence among our customers. Besides, customer satisfaction is our top priority. We offer comprehensive customer service and support, including technical consultation, pre-sales assistance, and after-sales service, to ensure a seamless experience for our clients.
    With a focus on innovation, quality, and customer satisfaction, Xi'an Ruijia Measuring Instruments Co., Ltd. is your trusted partner for all your weighing sensor needs. Contact us today!

    FAQ

    1. What detailed information do I need to provide if I want to place an order?

    We need to know the following information: Capacity, Usage and other related parameters you need.

    2. Do you have any discount?

    Yes, if you buy large QTY, please send us a email, we will give you a big discount.

    3. What terms of payment are available?

    We accept T/T, L/C, Trade assurance, Secure payment, Western Union, Paypal, Money Gram, etc.

    4.When will you arrange the production?

    We will arrange the production immediately after receiving your payment.

    5. How do you ensure good product quality?

    We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
