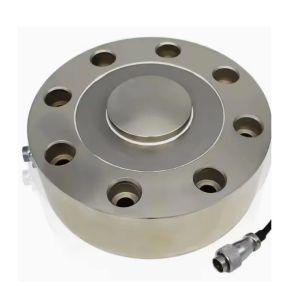

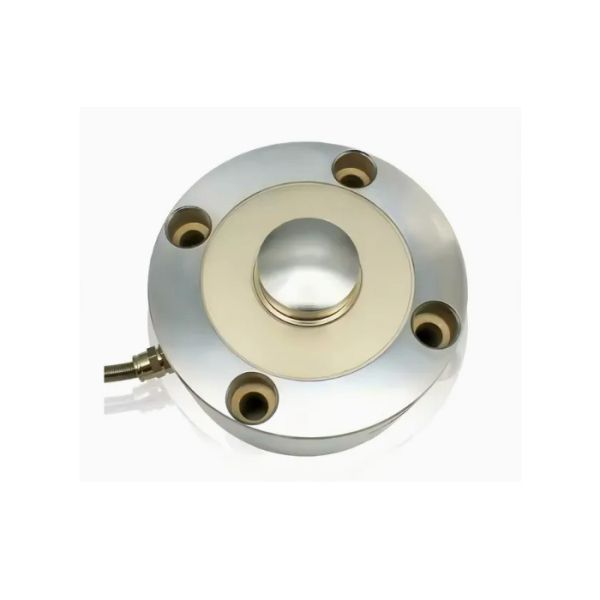

    lat Membrane Box Load Cell 300t 500t for Scale

    Ask Lasest Price
    Brand Name : RUIJIA
    Model Number : RJ
    Certification : CE
    Price : USD110 ~157/piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 Piece/Pieces per Month
    Delivery Time : 5-8 Work days
    • Product Details
    • Company Profile

    lat Membrane Box Load Cell 300t 500t for Scale

    lat Membrane Box Load Cell 300t 500t for Scale

    Features:
    · High stability
    · Low structural height
    · High comprehensive accuracy
    · Stable anti-interference signal
    · Nickel-plated high-quality alloy steel
    · Widely used in weighing equipment such as electronic belt scales, packaging scales, filling scales, etc. As well as in the field of automation equipment and testing.

    CAPACITY KN 50-500T
    Rated Output mV/V 2.0±10%
    Zero Balance %F.S. ±1
    Non-linearity %F.S. 0.05
    Hysteresis %F.S. 0.05
    Non-Repeatability %F.S. 0.03
    Creep (30min) %F.S. 0.03
    Temp. Effect On Output %F.S./10ºC 0.03
    Temp. Effect On Zero %F.S./10ºC 0.05
    Response frequency Hz 10k
    Material 42CrMoA
    impedance Ω 700/1400
    Insulation MΩ/100V DC ≥5000
    Recommended Excitation V 5-15
    Operating Temp. Range ºC -20-80
    Safe Overload %R.C. 150
    Ultimate Overload %R.C. 200
    Cable Size m Φ5*5m
    Cable ultimate tension N 98
    TEDS Optional

    lat Membrane Box Load Cell 300t 500t for Scale

    lat Membrane Box Load Cell 300t 500t for Scale
