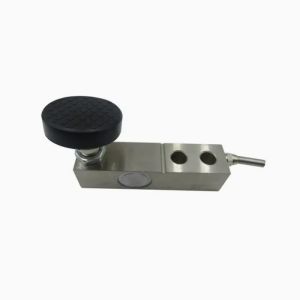

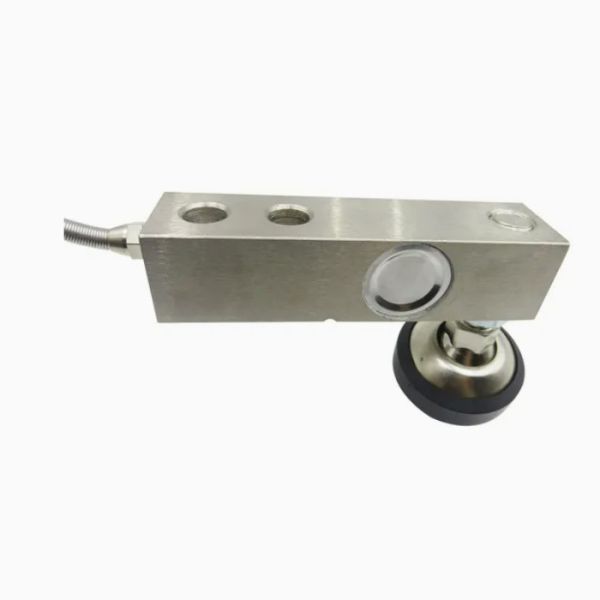

Alloy Steel Cantilever Beam Weighing Sensor 1t Instead of Keli Force Sensor

    Buy cheap Alloy Steel Cantilever Beam Weighing Sensor 1t Instead of Keli Force Sensor from wholesalers

    Buy cheap Alloy Steel Cantilever Beam Weighing Sensor 1t Instead of Keli Force Sensor from wholesalers
    • Buy cheap Alloy Steel Cantilever Beam Weighing Sensor 1t Instead of Keli Force Sensor from wholesalers
    • Buy cheap Alloy Steel Cantilever Beam Weighing Sensor 1t Instead of Keli Force Sensor from wholesalers
    • Buy cheap Alloy Steel Cantilever Beam Weighing Sensor 1t Instead of Keli Force Sensor from wholesalers

    Alloy Steel Cantilever Beam Weighing Sensor 1t Instead of Keli Force Sensor

    Ask Lasest Price
    Brand Name : RUIJIA
    Model Number : RJ
    Certification : RoHS
    Price : USD12 ~100/piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000 Piece/Pieces per Month
    Delivery Time : 5-8 Work days
    • Product Details
    • Company Profile

    Alloy Steel Cantilever Beam Weighing Sensor 1t Instead of Keli Force Sensor

    Alloy Steel Cantilever Beam Weighing Sensor 1t Instead of Keli Force Sensor

    Alloy Steel Cantilever Beam Weighing Sensor 1t Instead of Keli Force Sensor

    Product size drawing
    Alloy Steel Cantilever Beam Weighing Sensor 1t Instead of Keli Force Sensor

    capacity L L1 L2 L3 L4 H/B H1 D D2 D3
    0.5T~3T 130 12.7 76.2 25.4 57 31.8 15.9 Φ18 M16*1.75 Φ18
    3T~5T 171.5 19 95.3 38.1 72.5 38.1 26 Φ20 M20*1.5 Φ20
    7.5T~10T 222.5 25.3 124 50.8 10.2 50.8 25.4 Φ27 M24*2 Φ27


    Product parameter list

    capacity T 0.5~10T
    Rated Output mv/v 2.0/3.0±0.2
    Non-linearity %F.S 0.03
    Hysteresis %F.S 0.03
    Repeatability %F.S 0.03
    Creep %F.S/3min 0.03
    Temp.effect on zero %F.S/10ºC 0.03
    Temp.effect on span %F.S/10ºC 0.03
    Zero balance mv/v ±0.03
    Input impedance Ω 380±20
    Output impedance Ω 352±5
    Insulation resistance ≥5000(100VDC)
    Recommended excitation voltage VDC 5~12
    Allowed excitation voltage VDC 5~15
    Compensated temp.Range ºC -10ºC~+40ºC
    Operating temp.Range ºC -20ºC~+60ºC
    Safe overload %F.S 120
    Ultimate Overload %F.S 150
    Connection Excitation: Red:+ Black:-
    Signal: Green:+ White:-
