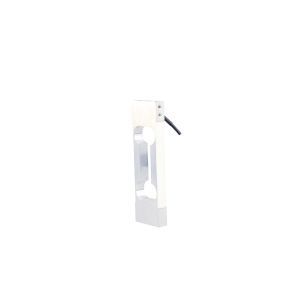

0.3kg 0.6kg 1.2kg 1.5kg 2kg small range balance load cell for electronic Weighing system

Principle and Structure

The Weighing Sensor is constructed using the principle of resistance strain. When the measured force acts directly on the strain gauge of the hollow cylinder pasted with the resistance strain gauge through the pull-indenter, the strain gauge is axially compressed and radially expanded, the corresponding axial resistance strain value decreases, and the radial value increases. When the bridge is out of balance, when the bridge power is supplied from the outside, there is an unbalanced voltage output at the angle output, which is proportional to the measured force acting on the load cell.

Features

1. The weighing sensor has a simple structure and is easy to install, use and carry.

2. It has good sealing and moisture-proof performance.

3. It has high anti-vibration and shock stability.

4. The structural design ensures that the transmission error is small and the measurement is reliable, and it has good static and dynamic characteristics.

5. It can be used for long-distance static and dynamic measurement.

Dimension

Specification:

Application
